From should-cost estimations to production planning, PartAI is the AI agent that acts as your most experienced manufacturing engineer.
Assistant

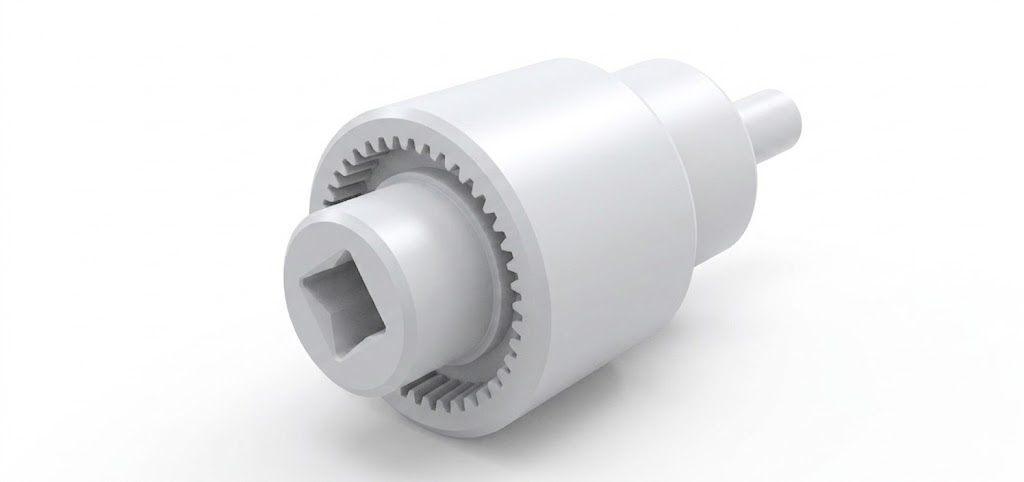

MP-0303-00.step
STEP · 1.2 MB
MP-0303-00_rev1.3.pdf
Drawing · 4 pages
Estimate production cost for 100 units. Material brass C3604, overhead 20%.
Thought for 6s
Reading STEP geometry & drawing tolerances
Calculating stock volume — brass C3604
Estimating cycle time (Swiss lathe + live tool)
Amortizing setup over qty 100
Applying 20% overhead
Cost estimate ready — see report on the right.
Cost estimate
Estimate ready
$278estimated total
$2.78 per unit · MP-0303-00 · Qty 100 · Brass C3604
Breakdown
Material (brass C3604)$138.50
Machining time (39s × 100)$78.17
Setup time (amortized)$15.00
Overhead (20%)$46.33
Total$278.00
Built natively for manufacturing data.
PartAI extracts critical engineering context — including precise GD&T from 2D PDFs and complex geometry from 3D models — to provide expert-level analysis and costing decisions for your team.
Blueprint analysis
MP-0303-00.step
STEP · 1.2 MB
MP-0303-00_rev1.3.pdf
Drawing · 4 pages
What's the tightest tolerance on this part, and which feature does it apply to?
Thought for 4s
Parsing GD&T callouts on sheet 2
Cross-referencing with STEP feature IDs
Ranking tolerances by tightness
The tightest tolerance on MP-0303-00 is Ø6.000 +0/−0.008 mm — a press-fit bore on sheet 2, view A-A.
Bore ⌀6 (datum B)+0 / −0.008 mm
Outer ⌀12 turning±0.02 mm
Face perpendicularity to B0.015 mm
SolidCAM 2025 — MP-0303-00.prz
Agent connected
Setup
CoordSys 1
Stock Ø13×26
Target model
Tools
T01 · OD turn 80°
T02 · Drill Ø5.8
T03 · Reamer Ø6 H7
T04 · Part-off 2mm
Operations
1 · Face
2 · OD rough → ⌀12.2
3 · OD finish → ⌀12 ±0.02
4 · Drill Ø5.8
5 · Ream Ø6 H7 AI
6 · Part-off
ISO · mm · Front view
Cycle: 38.6 s/partMaterial removal: 1.42 cm³Ready to post G-code
Agent
Program this part in SolidCAM for a Swiss lathe. Brass C3604, 100 units.
Driving SolidCAM
Loaded MP-0303-00.step into SolidCAM
Defined stock: Ø13 × 26 mm bar
Selected tools from library (4)
Created 6 operations
Generating toolpaths…
Job set up. Review the operations tree on the right — I'll post G-code once you approve.
Drives the software your team already runs on.
PartAI executes tasks across your technical stack, from generating initial toolpaths in your CAM software to pushing exact BOM entries directly into your ERP.
Make your manufacturing organization extraordinarily productive.
